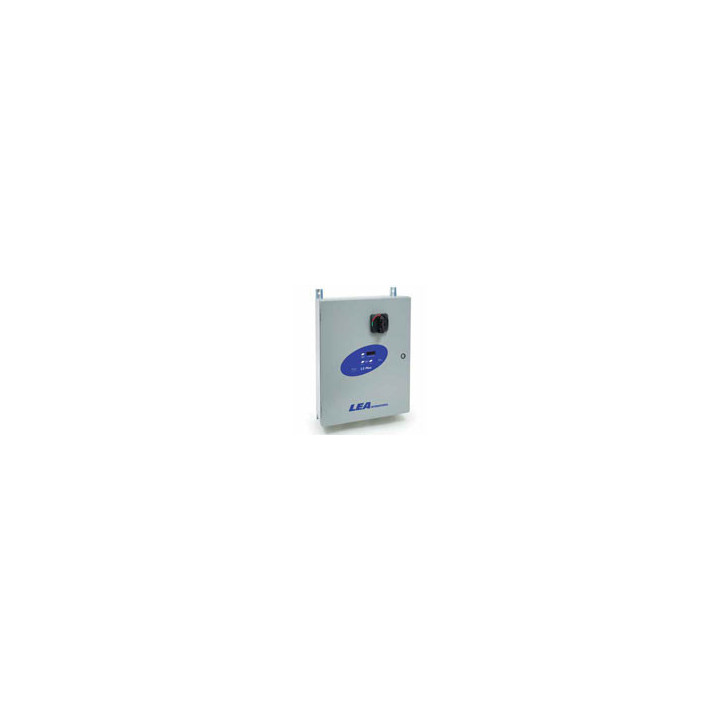

LEA LS PLUS 100 277/480-3Y-D

MODULAR SURGE PROTECTION DEVICES: LS PLUS SERIES

AC Surge Protection

The LS Plus is a compact modular surge protection device. This unit is listed to UL 1449 4th Edition using thermal protection to maintain performance ratings. The LS Plus is designed to be installed quickly and serviced easily to eliminate downtime. A robust surge capacity up to 300 kA and fully loaded diagnostics package make this a versatile SPD for any application.

FEATURES

* Thermally Protected MOV - allows maximum surge capacity, repetitive capability, and performance while maintaining safety requirements

* All Mode Protection - L-N, L-G, N-G & L-L

* Linear Sharing - reduces stress to extend product life

* Suppression Indicator-monitoring to identify damaged unit for easy servicing

* Modular - field serviceable unit

* Surge Counter - counts transients the unit suppresses

* External Indication Lights - shows loss of power and protection integrity

* Dry Contacts - Form C contacts for remote monitoring (NO & NC)

* Alarm with Disable Switch - audible indication

* Compact Enclosure - supports installation requirements when space is an issue

* Warranty - 10 years
