  • Transtector I2R-T112 AC IEC DIN Series Type 1 230 VAC Wye 4P

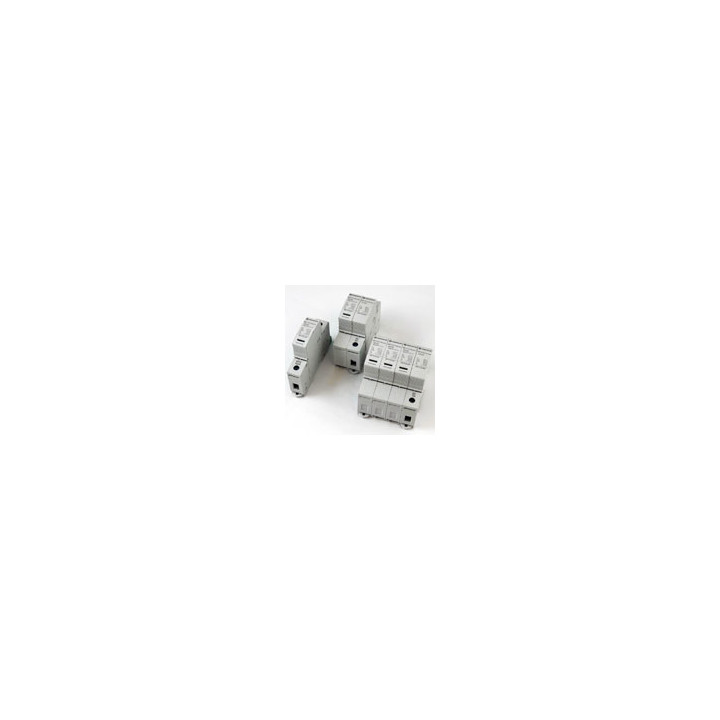

Transtector I2R-T112 AC IEC DIN Series Type 1 230 VAC Wye 4P

Fabricante Transtector
Número de parte I2R-T112-4P230
Call for availability Disponible para pedidos con entrega posterior

Vista rápida

Tipos de producto: Protectores contra sobretensiones
800,00 $
Los precios pueden estar sujetos a aranceles.

Este producto no está disponible temporalmente.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

I2R T112 Series - Type 1+2/Class I+II


The I2R T112 series of modular AC Surge Protection Devices (SPD) are designed to CE certifications and designed for a wide range of industrial, commercial, and automation control applications in accordance with EN/IEC 61643-11.


Engineered to protect critical equipment in harsh environments that are at risk for both conducted and induced lightning threats, the I2R T112 series of combined Type 1+2/Class I+II devices are ideal for TNS, TNC, TT networks.


FEATURES


* Conducted lighting impulse current 12.5 kA per phase


* Induced lightning maximum current 50 kA per phase


* Nominal discharge current 20 kA per phase


* Reverse chassis direction capability allows cable entry from top to bottom


* Visual and remote end of life indicators to ensure your network is always online


* Compact DIN Rail mounted SPD easy to install or retrofit


* Coded modules ensure safe and error free replacement


Ficha técnica

Tipos de producto Protectores contra sobretensiones
