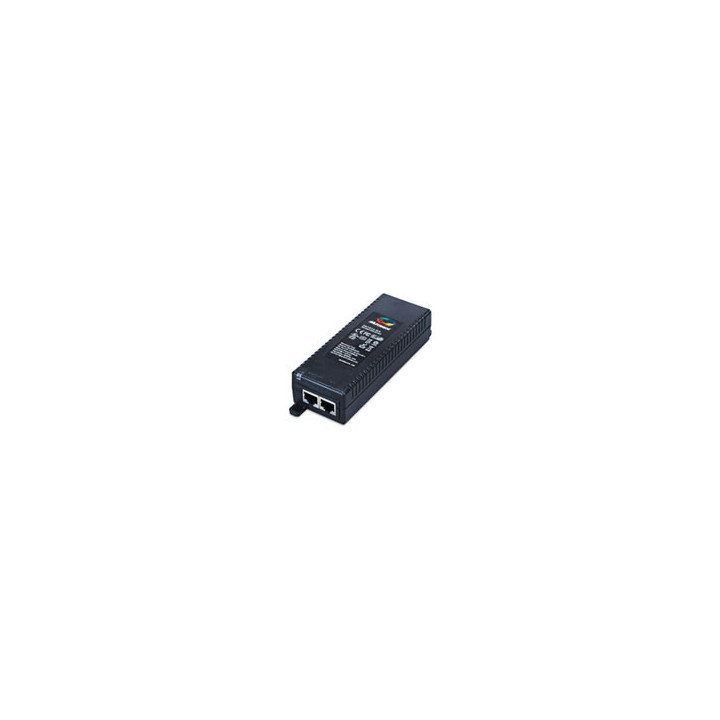

Power Supply, AC/DC PoE Midspan, Universal AC, 10/100/1000BaseT, 30W, 802.3at, PowerDsine 9001GR/AC

PD-9001GR - Single-port Gigabit PoE Midspan, 802.3at Compliant

Microsemi's PD-9001GR is a single port, high-power solution for remote powering of current and emerging high power applications. Generating up to 30W, the PD-9001GR enables remote power for a new range of applications including 802.11n Access Points, pan-tilt-zoom (PTZ) cameras and video-phones. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE802.3af. It can power both existing 10/100Base-T network devices and emerging wireless 1000Base-T devices such as WiMAX and wireless IEEE 802.11n access points.

PD-9001GR Features

* IEEE 802.3at compliant with 2-event classification

* IEEE 802.3af backward compatible

* Output power of 30W is guaranteed

* Supports 10/100/1000Base-T applications

* Compatible with IEEE 802.3af devices

* Safe: low power devices receive only the power they need

* Automatic Detection and Protection of non-standard Ethernet terminals

* Compact design fits easily in WLAN Access Point and

* IP Cameras installations
