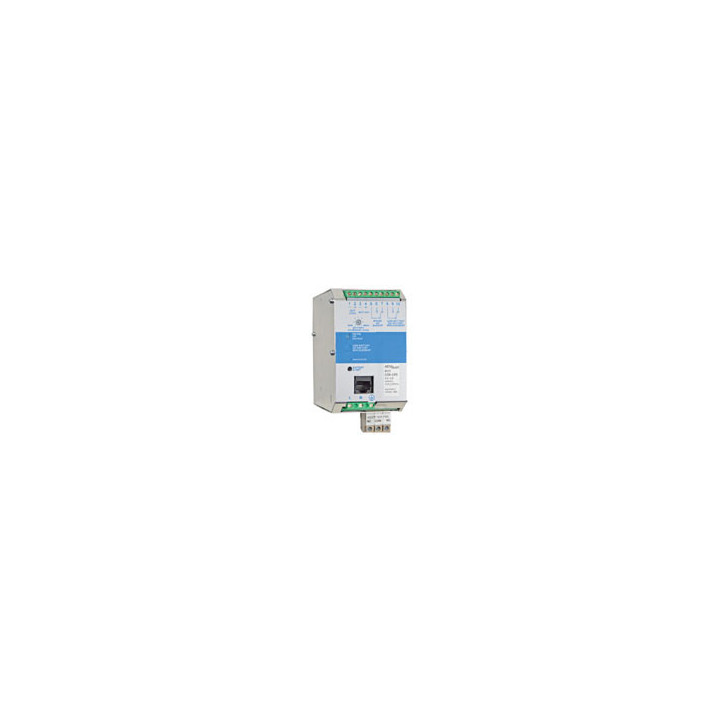

  • DIN rail mount DC UPS / Battery Detection System (BDS)

DIN rail mount DC UPS / Battery Detection System (BDS), Input 115/230 VAC, Output 12 VDC 10A. Powers Loads, Charges and Monitors

Fabricante Newmar
Número de parte BDS-DIN-UPS-12-10
Call for availability Disponible para pedidos con entrega posterior

Vista rápida

Tipos de producto: Fuentes de alimentación
817,05 $
Los precios pueden estar sujetos a aranceles.

Este producto no está disponible temporalmente.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

DC UPS/Battery Detection System (BDS)


Powers Loads, Charges and Monitors Back-Up Battery, Meets NFPA 1221 Alarm Requirements


* Combines power supply, battery charger, UPS circuitry and status monitoring in ONE compact DIN rail mount unit


* Alarm outputs comply with NFPA public safety in-building wireless communications back-up power requirements: AC Fail, Low Battery, & Charger Fail


* Separate outputs for load and battery


* ``Load Priority'' circuit prevents discharged battery from impacting operation of critical loads when AC power is restored


* 3 step charging for rapid battery recovery, programmable for battery type, with optional temperature compensation sensor


* Low voltage disconnect protects battery from total discharge


* High operating temperature range to 70° C


* Communication MODBUS via RS-485 Interface/RJ-45 (Model 48-10 only)


* CE Approved/Designed to UL 1950


Ficha técnica

Tipos de producto Fuentes de alimentación
