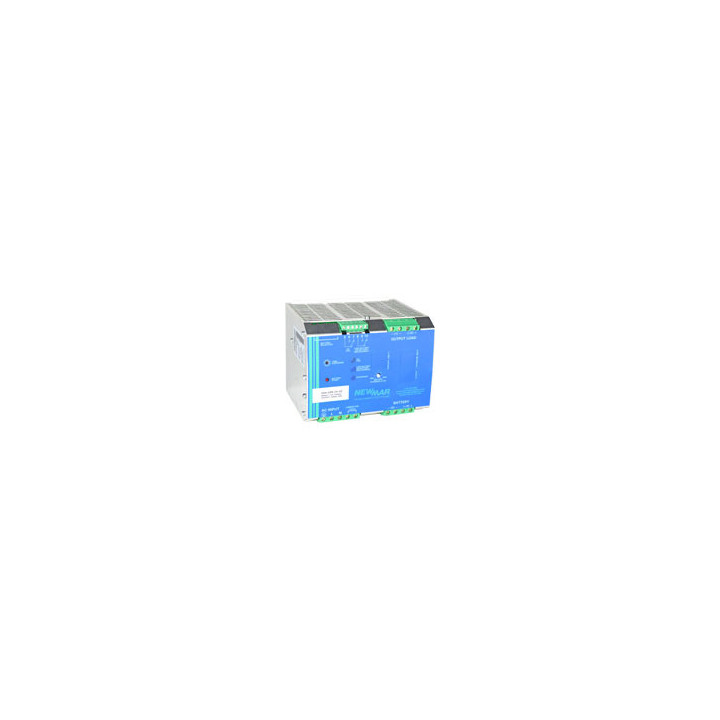

DIN rail mount DC UPS Power System, Input 115/230 VAC, Output 24 VDC 20A. Powers Loads, Charges and Monitors Back-Up Battery

DIN-Rail DC UPS

Powers Loads, Charges and Monitors Back-Up Battery, Ideal for Automation and Wireless System Transmitter Applications

* Combines all system power functions: power supply, battery charger, UPS circuitry and status monitoring in ONE compact DIN rail mount unit

* Separate outputs for load and battery

* ``Load priority'' circuit ensures power is dedicated first to the load, with remainder then allocated to battery charging, thus preventing a discharged battery from impacting operation of critical loads

* 3 step charging for rapid battery recovery, programmable for battery type, with optional temperature compensation sensor

* Battery automatically supports load anytime AC fails

* Low voltage disconnect protects battery from total discharge

* Automatic periodic battery health diagnosis

* High operating temperature range to 70° C

* Alarm contacts: AC fail, battery at risk

* Communication MODBUS via RS-45 Interface (DIN-UPS-48-10/24-20/12-35)

* CE Approved/Designed to UL 1950
