  • PolyPhaser Hybrid +15VDC Pass RF Lightning Protector

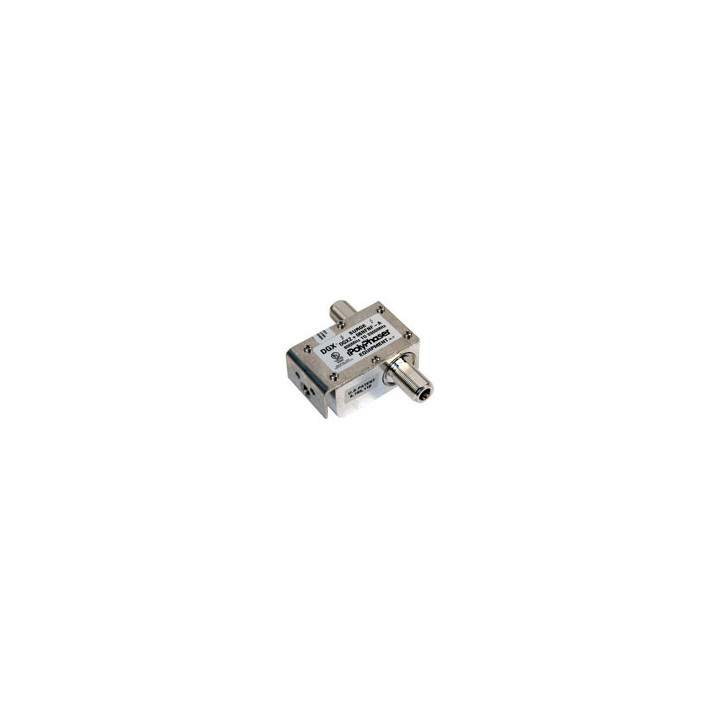

PolyPhaser Hybrid +15VDC Pass RF Lightning Protector, DC to 50MHz, TNC-Female to TNC-Female

Fabricante PolyPhaser
Número de parte AGXZ+15TFTF-A
Call for availability Disponible para pedidos con entrega posterior
BOGOTA
0 En stock
MEXICO
0 En stock
MIAMI FTZ
0 En stock

Vista rápida

Tipos de producto: Protectores contra sobretensiones
Línea de productos: Polyphaser Transtect
189,99 $
Los precios pueden estar sujetos a aranceles.

Este producto está agotado, pero puede solicitarlo para entrega posterior.

El plazo de entrega puede variar.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

GX Series


The GX Series of RF DC pass surge arrestors are engineered for RF coaxial applications where DC current is needed on the coaxial line. The GX Series can be used on GPS and other active antenna systems that operate in the range from DC to 2700 MHz.


FEATURES


* Frequency ranges from DC to 2.7 GHz


* Patented hybrid surge protection


* Repeatable RF performance after surge


* Flexible bulkhead and bracket mounting options


* Weatherproof when installed


* 7/16? DIN, N-Type and TNC


STANDARDS


* Weatherproof: IEC 60529 IP 67


* Bellcore TA-NWT-000487


* Procedure 4.11, Wind Driven (120 MPH)


* CE and RoHS


PATENTED LIGHTNING ARRESTOR TECHNOLOGY


protection technology. This hybrid circuit integrates the quick response of a silicon avalanche suppression diode (SASD) with the surge handling capabilities of a MOV and gas tube. The GX technology has been field tested for more than a decade and has been used in critical RF networks world-wide.


Ficha técnica

Tipos de producto Protectores contra sobretensiones
Línea de productos Polyphaser Transtect
E-commerce relevant Yes
