Gigabit Very High Power DC to DC Converter, 18-36VDC In, 24V 70W PoE Inserter, 4 pair power, for Ubiquiti airFiber X. Sale price

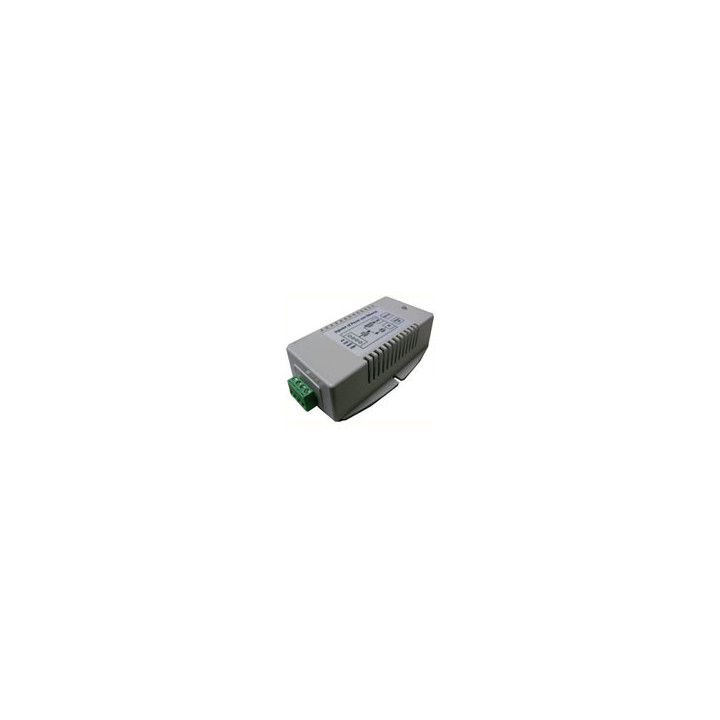

TP-DCDC-2424GR-VHP - Very High Power DC to DC Converter

The Gigabit compatible TP-DCDC-2424GR-VHP are special very high power DC to DC converters / PoE inserters designed especially for Ubiquiti airFiber x[tm] wireless radio systems and other systems which require high power passive PoE (High PoE). The unique PoE inserter supplies 24VDC PoE power on all 8 Ethernet wires (4 pair) with the following pinout: 1,2,4,5 V+ and 3,6,7,8 V-

They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.

The units are DIN rail mountable with available adapters: Model DIN-ClipKit-Uni.

Features

* Input Voltage 24VDC (18-36VDC)

* 8 wire 24VDC Passive PoE Output

* High Power Output to 70W

* Dual DC Inputs for Connecting 2 Power Sources

* Gigabit Data Thruput

* Low self consumption power (<2W)

* Short Circuit, Over Current and Reverse/Over Voltage Protection

* Industrial Temperature Range

Applications

* 24VDC Remote Power Systems

* Ubiquiti airFiber x[tm] Radios
