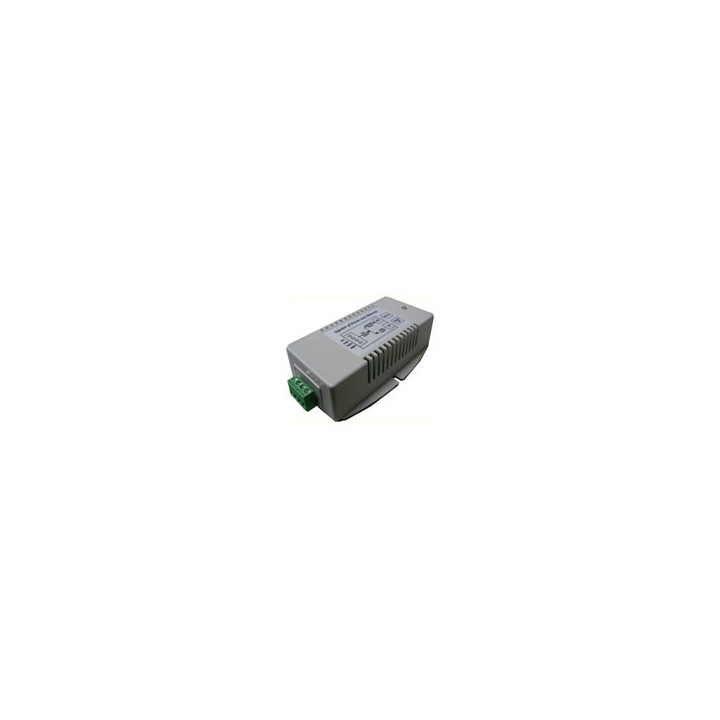

Gigabit 18-36VDC In, 56VDC Out 70W 4 Pair High Power DC to DC Converter and Passive PoE Inserter, for Ubiquiti airFiber

TP-DCDC-xx56G-VHP - Very High Power DC to DC Converter

The Gigabit compatible TP-DCDC-2456G-VHP and TP-DCDC4856G-VHP area special very high power DC to DC converters / PoE inserters designed especially for Ubiquiti airFiber[tm] antenna systems and other systems which require high power passive PoE such as Axis High Power PoE PTZ security cameras. The unique PoE inserter supplies 56VDC PoE power on all 8 Ethernet wires.

They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.

Features

* Input Voltage 24VDC (18-36VDC) or 48VDC (36-72VDC)

* 8 wire 56VDC Passive PoE Output

* High Power Output to 70W

* Dual DC Inputs for Connecting 2 Power Sources

* Gigabit Data Thruput

* Low self consumption power (<2W)

* Short Circuit, Over Current and Reverse/Over Voltage Protection

* Industrial Temperature Range

Applications

* 24VDC Remote Power Systems

* 48VDC or -48VDC Remote Power Systems

* Ubiquiti airFiber[tm] Antennas

* High PoE Compatible Security Cameras
