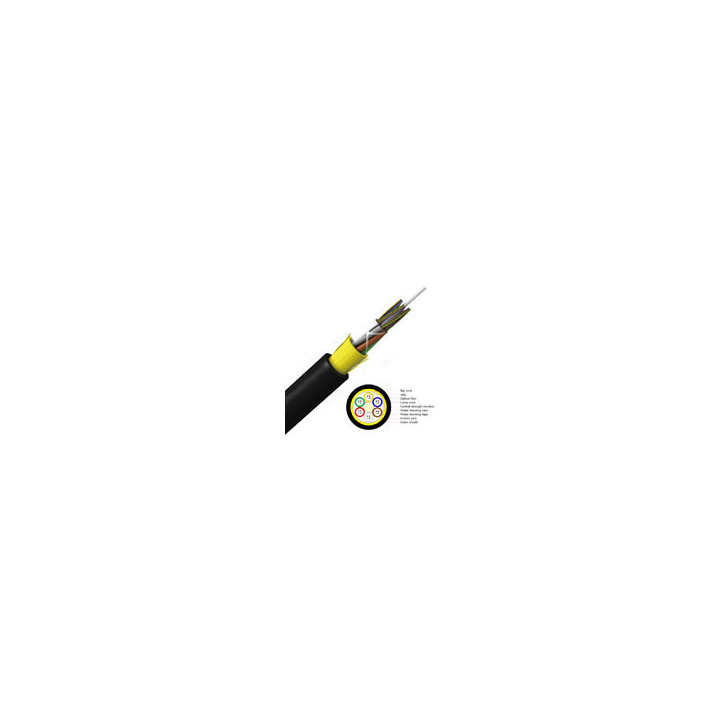

  • LiteLinx ADSS Fiber Cable

LiteLinx ADSS Fiber Cable, 144C, 200m Span, Aerial, Black, Loose Tube, Single Mode (OS2), 1km

Fabricante LiteLinx
Número de parte ADS-144-D-200m
Call for availability Disponible para pedidos con entrega posterior

Vista rápida

Tipos de producto: Cables de fibra óptica
Características del producto: Bobinas de cable | Exterior
Tipos de cable: Fibra óptica monomodo

Price and availability on request.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

ADSS Cable Single Sheath


The Fiber Optic Type ADSS (All-Dielectric Self-Supporting) Cable with a Single Sheath is engineered to excel in demanding applications, with a primary design focus on impressive spans of 100 to 200 meters (notably, specific models extend this to spans of up to 600 meters). This cable stands as a testament to its robust and dependable nature, delivering a dependable solution for high-speed data transmission. Its innovative structure has been meticulously crafted to provide optimal performance and exceptional durability, ensuring that it meets the highest standards of reliability in the field.


Highlights:


- Resistant to Environmental Factors: Withstand wind, ice, and temperature changes, expanding and contracting as needed.


- Low Installation Cost: Cost-effective due to their self-supporting design, ideal for challenging terrains.


- Lightweight and Compact: Easy to handle thanks to their dielectric design.


- Low Maintenance: Require minimal maintenance with their non-metallic construction.


- Long-Haul Application: Long-haul telecommunications networks and remote or water-crossing locations.


Structure Design:


- Fiber 12-144F ITU-T G652D (A1 & A2 Glass options are available)


- Loose tube containing fibers and filled with a suitable water tightness filling compound


- Loose tubes SZ stranded around CSM


- Water blocking tape


- Aramid Yarn


Ficha técnica

Tipos de producto Cables de fibra óptica
Características del producto Bobinas de cable | Exterior
Tipos de cable Fibra óptica monomodo
