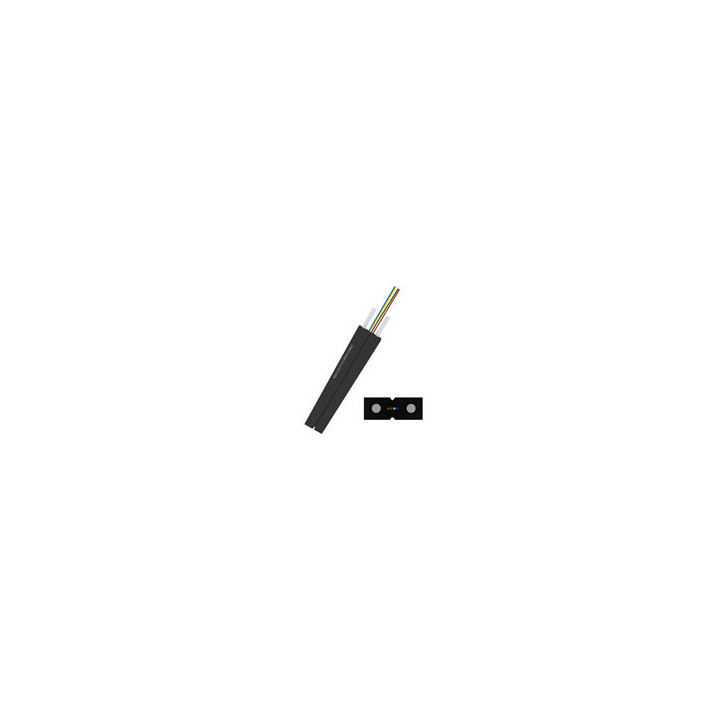

  • LiteLinx Flat Drop Fiber Cable with steel member support

LiteLinx Flat Drop Fiber Cable with steel member support, 2F, Single Mode (OS2), 1km

Fabricante LiteLinx
Número de parte DCB-2-NN-YS
Call for availability Disponible para pedidos con entrega posterior

Vista rápida

Tipos de producto: Cables de fibra óptica
Características del producto: Bobinas de cable | Exterior
Tipos de cable: Fibra óptica monomodo

Price and availability on request.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

FTTH Bend Resistance Drop Cable


The LiteLinx All-Dielectric FTTH Drop Cable is a cost-effective, compact cable designed for both indoor and outdoor applications, making it an ideal choice for short-distance external usage. Its flat design facilitates easy stripping without the need for specialized tools, streamlining the installation process.


The optical fiber is centrally positioned within the cable, with two parallel reinforcement rods made of either KFRP (Kevlar Fiber Reinforced Plastic) or FRP (Fiber Reinforced Plastic) located on both sides. These rods serve to protect the fibers against crushing and traction forces, ensuring their safety.


The LSZH (Low Smoke Zero Halogen) outer jacket provides excellent flame-retardant properties, emitting low levels of smoke and containing no halogen materials. This not only prevents toxicity but also offers resistance to UV radiation and various chemicals.


Structure Design:


- Two parallel FRP are placed at two sides


- Optical Fiber Unit 1-12F ITU-T G.657.A1 / G.657.A2


- LSZH outer sheath


Highlights:


- Compact Design: For indoor and outdoor use, enhances aesthetics.


- Easy Access: Simple peeling with minimal tools reveals clear fiber.


- Exterior Stapling: Rugged design allows secure outside wall installation.


- Thermal Stability: Maintains performance in extreme temperatures.


- OFNR/FTA Rated: Suited for basements/attics before living spaces.


- All-Dielectric: Eliminates need for bonding or grounding.


Ficha técnica

Tipos de producto Cables de fibra óptica
Características del producto Bobinas de cable | Exterior
Tipos de cable Fibra óptica monomodo
