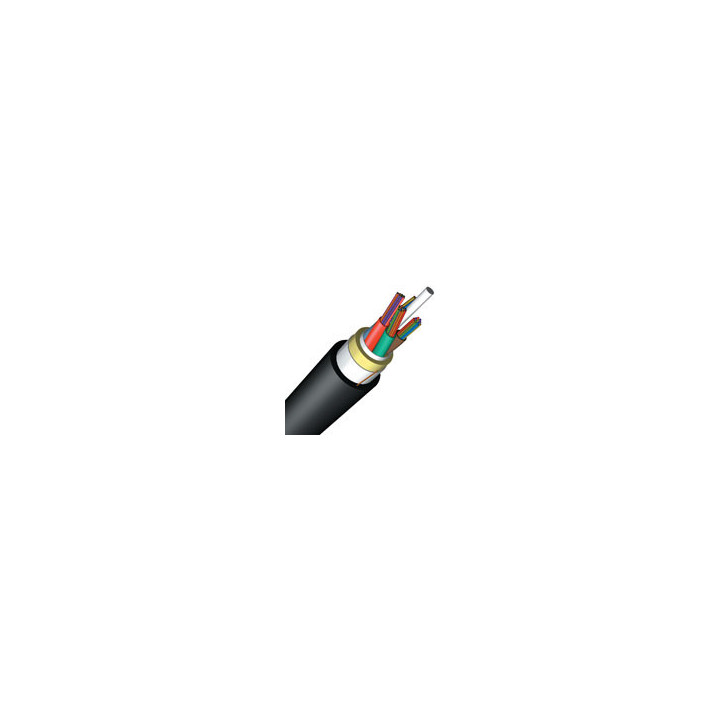

  • Flex-Span ADSS Mid-Span Single Mode (OS2) Fiber Optic Cable

Flex-Span ADSS Mid-Span Single Mode (OS2) Fiber Optic Cable, 500 SPAM, 48 Core, Aerial, Black

Fabricante AFL
Número de parte AE0489W520AA4
Call for availability Disponible para pedidos con entrega posterior

Vista rápida

Tipos de producto: Cables de fibra óptica
Características del producto: Bobinas de cable | Exterior
Tipos de cable: Fibra óptica monomodo

Price and availability on request.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

Flex-Span® ADSS Fiber Optic Cable


AFL Flex-Span All-Dielectric Self-Supporting (ADSS) cable is designed for aerial
distribution power lines, as well as underground duct applications. As its name indicates, there are no
metallic components and the cable does not require a support or messenger wire. Flex-Span ADSS
cables are a single jacket design intended for the shorter pole-to-pole span lengths in a distribution
environment. A broad combination of fiber counts and spans lengths in this product family provide
network designers with flexibility in their cable selection.


Features


* Gel-Filled Tubes are reverse-oscillated to allow slack for mid-span access - up
to 288 fibers in cable


- Gel-Free Buffer Tube options available - up to 216 fibers


* Pole-to-pole span lengths up to 1100 feet


* Single jacket design decreases the diameter and weight when compared to double
jacket ADSS cable; thus reducing pole loading


* No separation requirement of ADSS from conductors per National Electric Safety
Code (NESC) section 235


Applications


* Electric utility distribution power lines


- Framed in supply or communications space


* Underground duct


* Enterprise OSP networks


* Fiber-to-the-X networks


Ficha técnica

Tipos de producto Cables de fibra óptica
Características del producto Bobinas de cable | Exterior
Tipos de cable Fibra óptica monomodo
