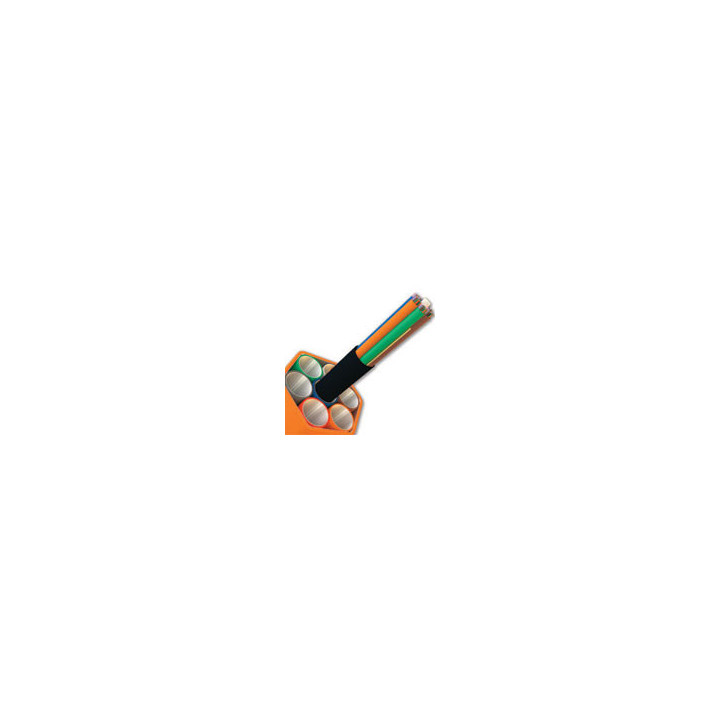

  • LM-Series SM OSP MicroCore Fiber Optic Cable with 24 Fibers

LM-Series SM OSP MicroCore Fiber Optic Cable with 24 Fibers, Single Mode (OS1), 2 Tubes with 12 Fibers (4 Fillers), Micro-Duct,

Fabricante AFL
Número de parte LM0249C6101NS
Call for availability Disponible para pedidos con entrega posterior

Vista rápida

Tipos de producto: Cables de fibra óptica
Características del producto: Bobinas de cable | Exterior
Tipos de cable: Fibra óptica monomodo

Price and availability on request.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

LM-Series OSP MicroCore® Cable


AFL OSP MicroCore® cable series (LM-Series) is designed for outside plant installation in microduct conduit systems. The foundation of the design is the multi-fiber-set, gel-filled buffer tube construction. The kink-resistant buffer tube contains multiple 12-fiber sets of color-coded fibers. Each set within the buffer tube is grouped using dual color-coded binder threads. The dry-blocked core is made up of SZ-stranded buffer tubes around a central strength member. The low-friction, high-strength overall jacketing system protects the cable-core while providing an optimized cable package supporting high-speed, long-distance jetting performance. The unique, high-fiber density geometry yields a cable construction that can accommodate up to 432 fibers and can be blown into microducts ranging in inside diameters from 10 mm to 16 mm.


Features


* 12 up to 432 250 ìm fibers


* Low-friction outer jacket designed for air-blown installations


* Robust, kink-resistant buffer tubes reduce time and handling issues associated with enclosure buildouts


* 300lb installation tensile load rating


* OD compatible with 10 mm to 16 mm inside diameter microducts


Applications


* Long-haul, middle-mile and metro-loop


* Campus inter-building backbone distribution


* Low-cost fiber upgrade migration strategies


Ficha técnica

Tipos de producto Cables de fibra óptica
Características del producto Bobinas de cable | Exterior
Tipos de cable Fibra óptica monomodo
