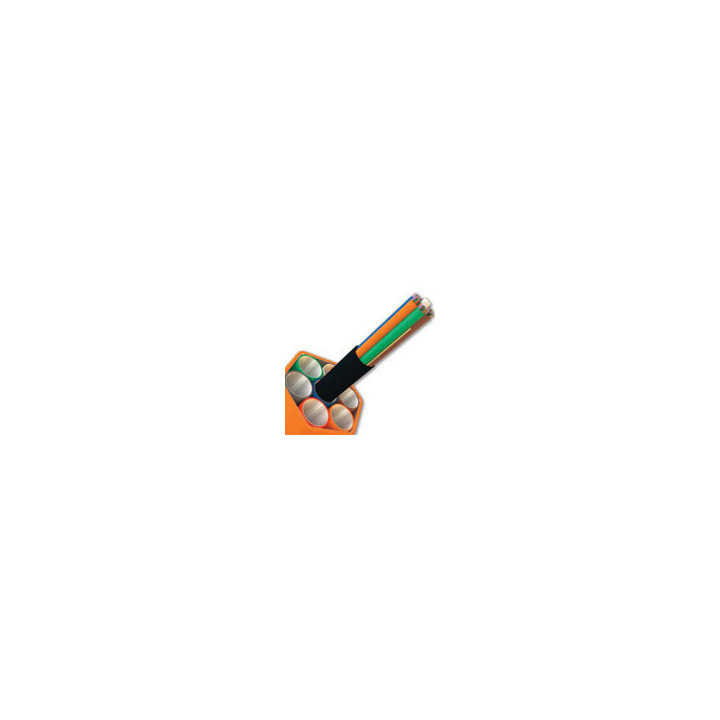

  • MicroCore LM200 Series Fiber Optic Cable

MicroCore LM200 Series Fiber Optic Cable, 72 Fibers, Single Mode (OS1), 3 Tube with 24 Fibers (3 Fillers), Micro-Duct, Orange

Fabricante AFL
Número de parte LM072BCO6101NS
Call for availability Disponible para pedidos con entrega posterior

Vista rápida

Tipos de producto: Cables de fibra óptica
Características del producto: Bobinas de cable | Exterior
Tipos de cable: Fibra óptica monomodo

Price and availability on request.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

LM200-Series OSP MicroCore® Cable


The product design integrates 200 ìm buffered single-mode fiber which allows for reduced diameter cables compared to traditional OSP micro-cables. The foundation of the design is the multi-fiber-set, gel-filled buffer tube construction. The kink-resistant buffer tube contains multiple 12-fiber sets of color-coded fibers. Each set within the buffer tube is grouped using dual color-coded binder threads. The dry-blocked core is made up of six buffer tubes SZ-stranded around a central strength member. The low-friction, high-strength overall jacketing system protects the cable-core while providing an optimized cable package supporting high-speed, long-distance jetting performance. The LM200-Series is the right choice for use in bundled micro-duct pathways allowing for future, incremental cable additions as network circuits and bandwidth requirements increase.


Features


* 24 to 432 fibers


* Robust, kink-resistant buffer tubes reduce time and handling issues associated with enclosure buildouts


* Low-friction jacketing system allows for longer jetting distances


* Designed for use in bundled micro-duct pathways allowing for future, optical circuit additions


Applications


* Long-haul, Local Loop FTTx, Campus Backbone connections for 10G, 40G, and 100G network transmission speeds


* Air-jetted into bundled micro-ducts


* Congested pathway over-ride installations


Ficha técnica

Tipos de producto Cables de fibra óptica
Características del producto Bobinas de cable | Exterior
Tipos de cable Fibra óptica monomodo
