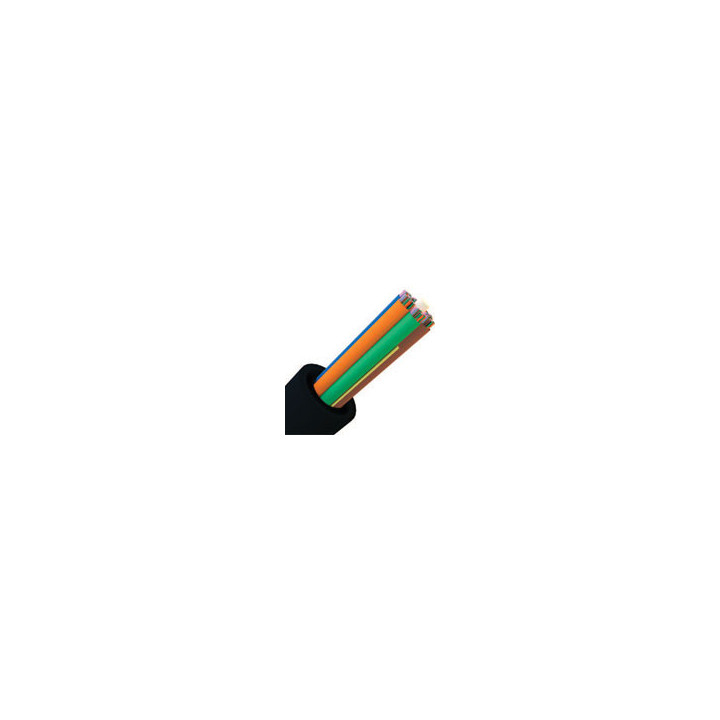

  • LMHD-Series OSP Heavy Duty MicroCore Fiber Optic Cable

LMHD-Series OSP Heavy Duty MicroCore Fiber Optic Cable, 144 Fibers, Single Mode (OS1), 6 Tubes with 24 Fibers (No Fillers), OSP,

Fabricante AFL
Número de parte LM144xO6201N1
Call for availability Disponible para pedidos con entrega posterior

Vista rápida

Tipos de producto: Cables de fibra óptica
Características del producto: Bobinas de cable | Exterior
Tipos de cable: Fibra óptica monomodo

Price and availability on request.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

LMHD-Series OSP Heavy Duty MicroCore® Cable


The Heavy Duty OSP MicroCore® (LMHD-Series) is small-diameter loose tube fiber optic cable with a 600lb load-rating. The design consists of SZ-stranded gel-filled buffer tubes, aramid and fiberglass strength elements, and a thick-walled, UV-resistant outer jacket. These cables can be jetted or pulled into standard HDPE ducts and, because of their small diameters, can be jetted into bundled microduct pathways. Minimum pathway inside diameters range from 13 mm to 20 mm, varied by the cable fiber count. When the application requires a transition from underground to aerial, the LMHD-Series cables can be lashed to aerial messenger wires using standard OSP cable lashing equipment and techniques.


Features


* 12 up to 432 250 ìm fibers


* 600 lb tensile load rating for pulling


applications to be comparable to traditional underground loose tube fiber optic cables but at a smaller size


* Small-diameter construction offers improved air-jetting when compared to conventional loose tube cables


* Thick-walled outer jacket capable of direct lashing to aerial messenger wires


* Toneable option includes a low-resistance copper wire that allows cable/pathway to be located using standard electromagnetic detector devices


Applications


* Long-haul, local loop FTTx, campus backbone connections for 10G, 40G and 100G network transmission speeds


* Air-jetted into bundled micro-ducts


* Congested pathway over-ride installations


Ficha técnica

Tipos de producto Cables de fibra óptica
Características del producto Bobinas de cable | Exterior
Tipos de cable Fibra óptica monomodo
