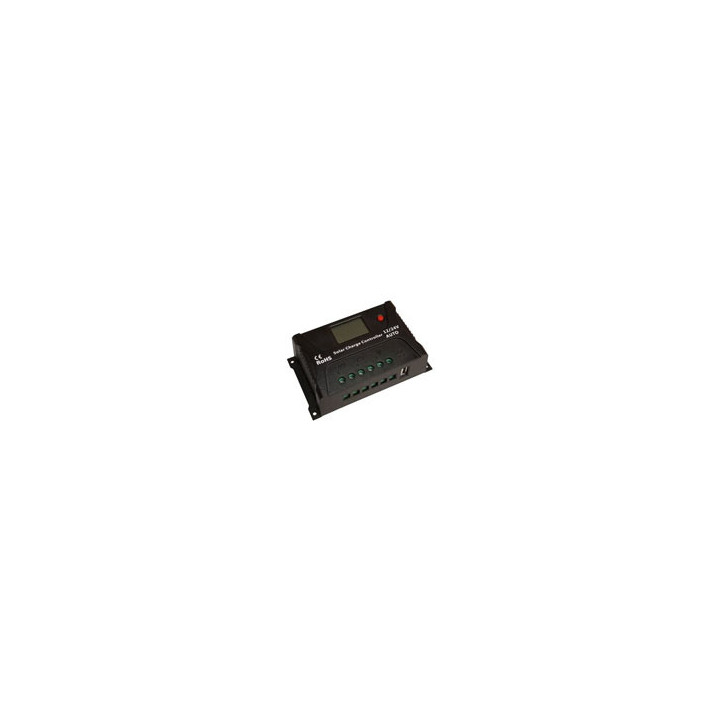

• Solar PWM Battery Charge Controller

Solar PWM Battery Charge Controller, Auto Voltage, 12/24V, 20A, Parametric Display

Fabricante Tycon Systems
Número de parte TP-SC24-20
Agotado

Vista rápida

Tipos de producto: Controladores de red
Línea de productos: Tycon Systems
E-commerce relevant: Yes
43,95 $
Los precios pueden estar sujetos a aranceles.
Este producto se encuentra actualmente agotado, pero puede solicitarse bajo pedido. El plazo de entrega puede variar.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

TP-SC24-20 - Solar Charge Controller


Tycon Solar®'s new TP-SC24-20 solar controllers are 3 stage PWM type temperature compensated battery charging controllers. The controllers are auto-ranging to accommodate 12V and 24V battery systems. They are designed to charge AGM or GEL type sealed lead acid batteries. They have an integral LCD display that shows battery voltage, temperature, load current and solar current.


They have multiple load operating modes which can be set through the ``key'' button on the controller.


Features


* 3 Stage PWM Temperature Compensated Charging


* Fully Automatic Operation


* LCD Displays Battery Voltage, Temp, Load Current and Solar Current


* Autoranging 12V or 24V Battery Arrays


* Multimode Load Operation - Normal (default) or Light Control


* Soft Start Load Output to Power High Capacitive Loads


* Automatic 30day Battery Equalization


* Conformal Coated Electronics for Environmental Protection


* TVS lightning protection, Industrial Temperature Range


* USB Charging Port


* Low self consumption <0.3W


Ficha técnica

Tipos de producto Controladores de red
Línea de productos Tycon Systems
E-commerce relevant Yes
