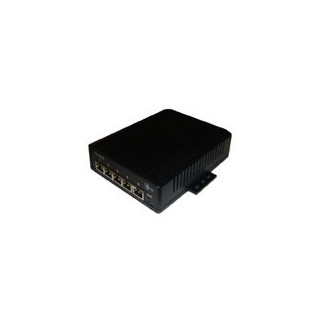

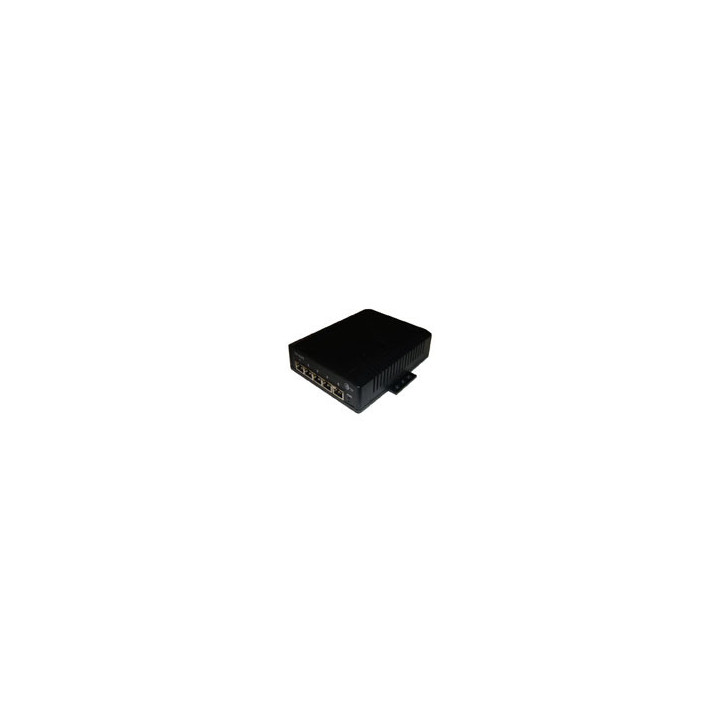

  • 5 Port High Power PoE 10/100/1000BaseT Switch

5 Port High Power PoE 10/100/1000BaseT Switch, 802.3at/af PoE Out, 48-57VDC In, 802.3bt Input Port 5

Fabricante Tycon Systems
Número de parte TP-SW5G-D+
Call for availability Disponible para pedidos con entrega posterior

Vista rápida

Tipos de producto: PoE | Switches
Línea de productos: Tycon Systems
324,95 $
Los precios pueden estar sujetos a aranceles.

Este producto no está disponible temporalmente.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

TP-SW5G-D+ - 802.3bt Input PoE+ Switch


The TP-SW5G-D+ Power over Ethernet (PoE) 5 Port Gigabit switch offered by Tycon® is a fully automatic high speed Layer 2 Ethernet switch with one 802.3bt PoE input and four 802.3at PoE outputs. Ports 1-4 are 802.3at 35W PoE Out. The Uplink Port 5, is 802.3bt compatible so the switch can accept up to 100W PoE on 4 pairs to power the switch and connected devices remotely over CAT5 or higher Ethernet Cable. The Ethernet spec supports distances up to 100m (328ft). By using as a repeater, 200m total distance is realistic.


The switch can accept power via three different interfaces: Wire Terminal Connector, 4 pin Mini DIN connector or via 802.3at/bt PoE input to Uplink Port 5. Two different power inputs can be used for redundancy. The higher voltage takes priority.


The RJ45 connectors are shielded and grounded to the common ``FG'' (Frame Ground) connection. The units have 15kV surge protection on all Ethernet wires and are conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial applications.


Features


* Triple Power Inputs: 802.3bt PoE, Wire Terminal, 4 Pin mini DIN


* Gigabit Compatible


* Built-in Surge Protection


* Automatic MDI/MDI-X Crossover


* Automatic Speed and Duplex Sensing


* Low Self Power and High Temperature Operation


* DIN Rail Adapters included


Ficha técnica

Tipos de producto PoE | Switches
Línea de productos Tycon Systems
E-commerce relevant Yes
