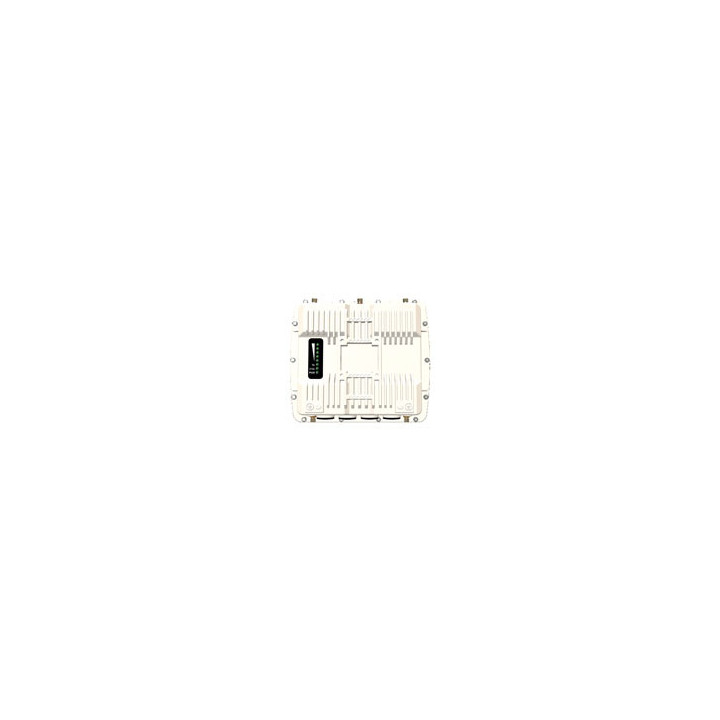

• SX5-1040A-WD, Stratum X5 5GHz All-purpose Unit: Base Station

SX5-1040A-WD, Stratum X5 5GHz All-purpose Unit: Base Station Unit (Limited to 1 SU) or Subscriber Unit, MIMO 4x4, 1+ Gbps, 4x RP

Manufacturer Proxim Wireless
Part Number 906-00003
Out of stock

Quick look

Product Types: Base Station (AP) | CPE | PtP Radio Module
Product Features: ETSI | Outdoor | Up to 1 Gbps
Frequencies: 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz

Warning: Array to string conversion in /data/www/winncom/store/var/cache/dev/smarty/compile/winncomlayouts_layout_full_width_tpl/b8/6a/6e/b86a6eb9efc5fcd8e19a2ffa58f09bcb9673014c_2.file.product-prices-winncom.tpl.php on line 184
Array
Pricing may be subject to tariffs.
Este producto no está disponible actualmente, pero puede solicitarse bajo pedido. El tiempo de entrega puede variar.

(edytuj w module Customer Reassurance)

(edytuj w module Customer Reassurance)

Stratum[tm] X5


The Stratum[tm] X5 is the first in a new series of ultra-high-performance point-to-point and Point to Multipoint radio endpoints.


The Stratum[tm] X5 is a 5 GHz, MIMO 4x4 point-to-point radio with greater than 1.5 Gbps throughput, and ideally suited to high capacity backhaul applications.


The 4x4 MIMO radio offers two significant benefits:


* In MIMO 4x4:4 mode, a 20MHz channel will double the throughput compared to the typical MIMO 2x2:2 point-to-point systems available today.


* In MIMO 4x4:2 mode, antenna diversity enables two mirrored data streams that improve radio stability in harsh environments.


Other Features Include:


* Up to 1.58 Gbps Throughput.


* Wide Band Radio - 5.150-5.850 GHz


* 2.5G Ethernet with optional 10G SFP+ optical transceiver cage


* AES 128-bit encryption is upgradeable to 256-bit


* Full tilt and swivel mounting kit included.


Flexible Antenna Options


The SX5-1042A is a flexible variant that includes an integrated quad polarity panel antenna,


plus software selectable connectors for external antennas.


Model SX5-1040A is a connectorized unit purpose build for external quad polarity antennas where specific antenna patterns or gain adjustments are needed.


Advanced Interference Management


Proxim ClearConnect[tm] combines multiple dynamic technologies and delivers the best interference management solution.


Flexible and Secure Management Options


Management options include Proxim BlueConnect[tm]; our Bluetooth-enabled mobile management application; TLS 1.3 web GUI, SSH 2.0 CLI, and SNMP v3 for ProximVision Advanced or other network management solutions.


Rugged Reliability


Stratum x5 uses an IP67-rated metal enclosure to ensure years of reliable service in harsh environments, including high winds, high salt, and temperature extremes.


Data Sheet

Product Types Base Station (AP) | CPE | PtP Radio Module
Product Features ETSI | Outdoor | Up to 1 Gbps
Frequencies 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz
