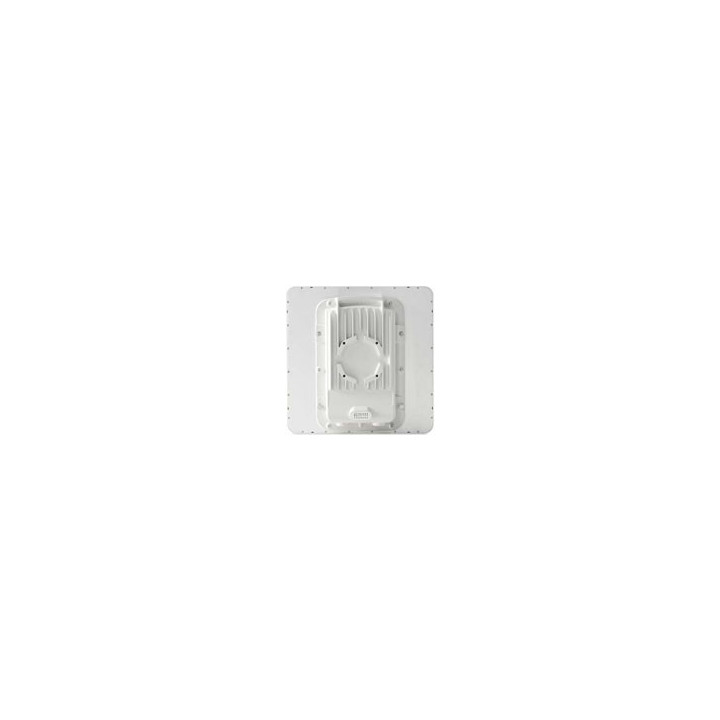

PTP550 5GHz Integrated 23 dBi Antenna End with AC Power Supply, Mounting Bracket and US Line Cord (Replaces C050055H010A), RoW v

Name: PTP550 5GHz Integrated 23 dBi Antenna End with AC Power Supply, Mounting Bracket and US Line Cord (Replaces C050055H010A), RoW v
Brand: Cambium Networks
SKU: C050055H010B
Price: 953.52 USD
Availability: BackOrder

Fabricante Cambium Networks

Número de parte C050055H010B

Call for availability Disponible para pedidos con entrega posterior

BOGOTA

0 En stock

MEXICO

0 En stock

MIAMI FTZ

0 En stock

Tipos de producto: Módulo de radio PtP

Características del producto: Antena integrada | ETSI | Exterior

Frecuencias: 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz

953,52 $

Inicie sesión para ver su mejor precio

Los precios pueden estar sujetos a aranceles.

Este producto está agotado, pero puede solicitarlo para entrega posterior.

El plazo de entrega puede variar.

Obtenga el equipo que su empresa necesita con LEAF.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

PTP 550 - 1.4 Gbit CAPACITY

Cambium Network is excited to introduce our latest Point to Point Gigabit throughput solution based on 802.11 ac Wave 2 operating in 5 GHz wireless space, that address gigabit capacity need for high speed backhaul solution for mid range and long range applications. The PTP 550 solution draws it attributes from Cambium's Point to Point product portfolio such as PTP 650/670 and PTP 450i.

METAL HOUSING

Each PTP 550 comes with IP66/67 Metal enclosure, which protects the radio from extreme condition and solar radiation.

ANTENNA ALIGNMENT

Using GUI e-alignment on the radio, the PTP 550 provides accurate and reliable way to install the radio.

CHANNEL BONDING

Each channel can have independent channel bandwidth that provides for flexibility in channel selection, band selection and address throughput requirements. Using two 80 MHz channel the PTP 550 achieves 1.36 Gbps.

Dynamic Spectrum Optimization (DSO)*

With Dynamic Spectrum Optimization, PTP 550 systems are constantly optimizing the channel of operation to maximize link reliability and performance. Based on environment the PTP 550 can be set to move or search better spectrum. As a result, customer can get more throughput with limited spectrum in even the most challenging environments.

OTHER KEY FEATURES

* 5.150 to 5.950 GHz

* Up to 1.36 Gbps

* Built in Live Spectrum analyzer

* IPv6/IPv4 dual-stack management support

* AES 128 Encryption

* LINKPlanner Support

* cnMaestro Support

* ARQ Support

* In Roadmap

Ficha técnica

Tipos de producto	Módulo de radio PtP
Características del producto	Antena integrada \| ETSI \| Exterior
Frecuencias	4.9-5.8 GHz \| 5.2 GHz \| 5.4 GHz \| 5.8 GHz
Línea de productos	Cambium NetworksCore
E-commerce relevant	Yes

Cambium_PTP550_Specsheet.pdf

Descargas (225.05KB)
