• B6x, Mimosa 5.15-6.4GHz 24 dBm 3.4Gbps capable Modular PTP

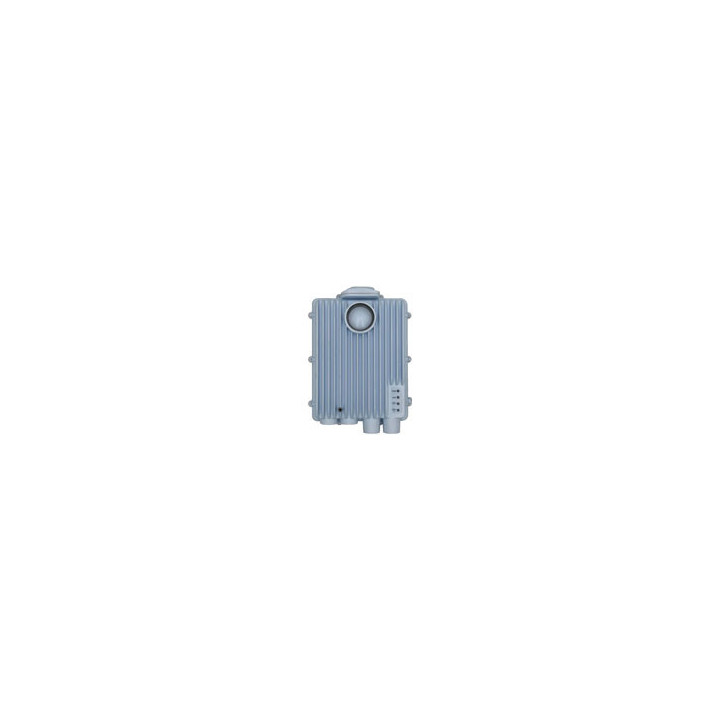

B6x, Mimosa 5.15-6.4GHz 24 dBm 3.4Gbps capable Modular PTP Backhaul Radio with GPS Sync, uses N5-X Antennas, PoE Injector 502-00

Fabricante Mimosa
Número de parte 100-00116
Agotado

Vista rápida

Tipos de producto: Módulo de radio PtP
Características del producto: Antena integrada | Exterior
Frecuencias: 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz | 6 GHz
735,00 $
Los precios pueden estar sujetos a aranceles.
Este producto se encuentra actualmente agotado, pero puede solicitarse bajo pedido. El plazo de entrega puede variar.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

B6x - High Capacity, Extreme Speed, and Super Value


B6x Point-to-Point (PTP) Backhaul Radio 5.15-6.425 GHz


The Mimosa B6x is one of the industry's fastest unlicensed backhaul solutions. It's ideal for short to medium range relay and tower links, custom-engineered collocation, and unlicensed 5.15-6.4 GHz spectrum. It's modular, with the ability to connect N5-X compatible twist on antennas (dish - not included). With the latest in Wi-Fi 6E OFDMA technologies, and access to new 6 GHz bands, the B6x achieves extremely low latency with speeds of up to 3.4 Gbps and high reliability with new noise fighting features.


Fast and Flexible


Deliver industry-leading unlicensed point-to-point connectivity together with the N5-X antenna, offering up to 3.4 Gbps (IP) across various models (12 to 30+ dBi). Benefit from 320 MHz aggregate channel capacity and GPS Sync mode for peak performance flexibility.


OFDMA Modulation


Unlicensed spectrum interference mitigation using OFDMA modulation coupled with dual-channel and auto-everything technology.


Ultra Rugged


Carrier-grade IP67 design allows the B6x to withstand the harshest of environmental conditions.


Extended Frequency


Rise above the noise with extended frequency support from 5.15-6.425 GHz. N5-X antennas also


offer best-in-class sidelobe noise rejection.


GPS Sync for Rapid Expansion


Collocate in close proximity with other Mimosa GPS enabled radios to quickly expand network.


Monitor With Ease


Assessing link health and identifying potential problems has never been easier. Links are instantly monitored from Mimosa Management Platform.


Ficha técnica

Tipos de producto Módulo de radio PtP
Características del producto Antena integrada | Exterior
Frecuencias 4.9-5.8 GHz | 5.2 GHz | 5.4 GHz | 5.8 GHz | 6 GHz
