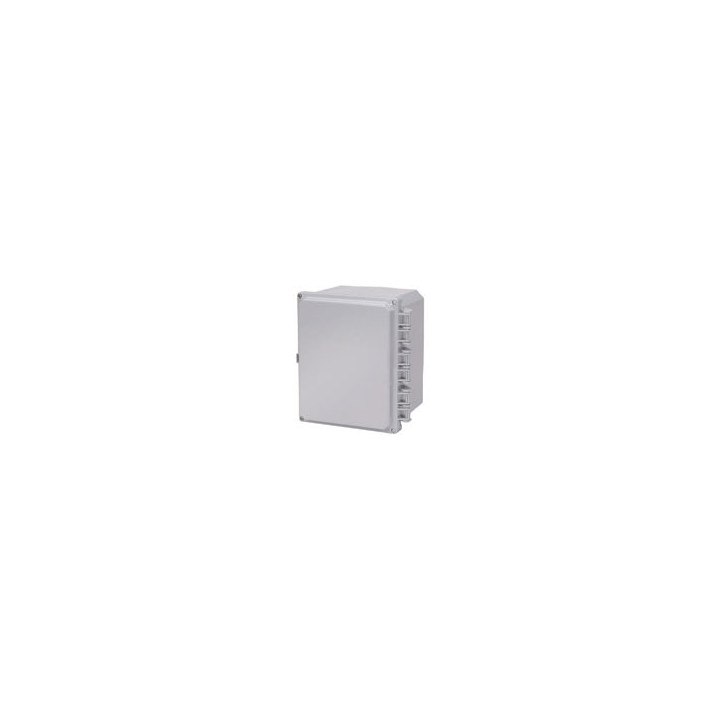

  • Winncom Breakout Box 10"x8"x4" with Opaque Hinge

Winncom Breakout Box 10"x8"x4" with Opaque Hinge Cover/Latch/Feet, 2x Surge Arrestors, Supports 4x Singlemode Fibers, 2x DC, Nem

Fabricante Winncom Technologies
Número de parte WBBOX-2SMFLC-2DC-2SA
Call for availability Disponible para pedidos con entrega posterior

Vista rápida

Tipos de producto: Gabinetes para exteriores
Características del producto: Exterior | Policarbonato
Línea de productos: Enclosure Parts
1.199,00 $
Los precios pueden estar sujetos a aranceles.

Este producto no está disponible temporalmente.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

Winncom Breakout Box WBBOX-2SMFLC-2DC-2SA


The Winncom Breakout Box provides a weather protection solution for Optical Fiber and Power. The modular design is customizable to meet installation requirements.


This surge suppression equipment device has a maximum amperage of 5 kA. Our electrical / lightning surge protection DC SPD rated at 5 kA on 48Vdc. The direct current surge protector device is certified for IEC EN 60529. Transtector transient voltage suppressor for DC power devices 1104-11-002 product PDF datasheet with details of specifications and CAD drawing with dimensions can be found on the website.


Protection from surge in this Transtector device is in the form of Silicon Avalanche Suppression Diode (SASD). This DC SPD uses Silicon Avalanche Suppression Diode circuits to protect electrical equipment from spikes in direct current power. Transient direct current power from surges such as lightning or strong electrical changes are handled through Silicon Avalanche Suppression Diode protection circuits in the 1104-11-002 SPD.


Features and Benefits


The design is applicable to a wide array of site specific requirements. The Winncom Breakout Box includes DC surge protection and combined with the associated Hybrid cable options, provides unmatched flexibility of electrical and environmental requirements.


* Lower Cost than other typical installations


* Fewer Cable runs from the switch to the radio(s)


* Easier Troubleshooting cable faults


* Standardization of installations


* Applicable to many types of configurations


* High Quality Components


* Protection: Class II Silicon Avalanche Suppression Diode by Transtector


Ficha técnica

Tipos de producto Gabinetes para exteriores
Características del producto Exterior | Policarbonato
Línea de productos Enclosure Parts
E-commerce relevant Yes
