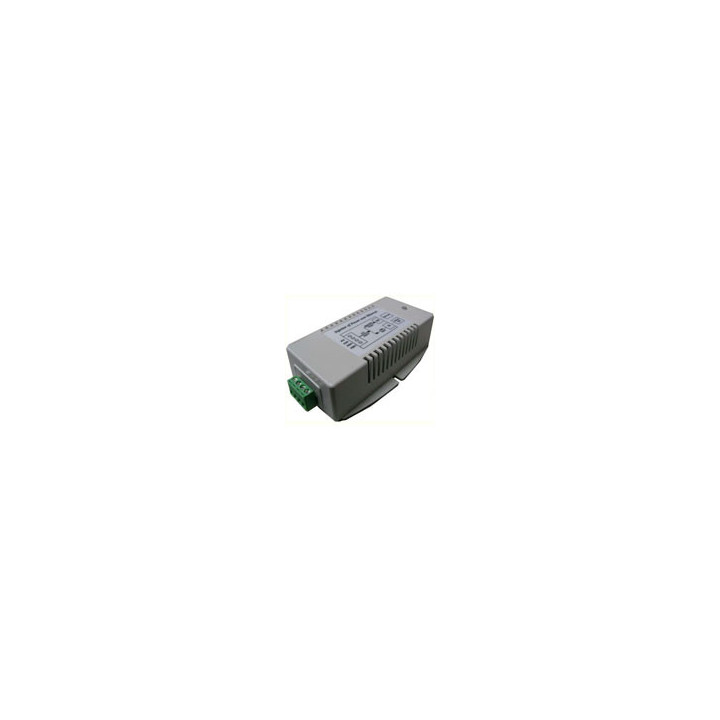

• Gigabit 36-72VDC In, 56VDC Out 50W High Power DC to DC

Gigabit 36-72VDC In, 56VDC Out 50W High Power DC to DC Converter and PoE Inserter

Fabricante Tycon Systems
Número de parte TP-DCDC-4848G-HP
20 In Stock

Vista rápida

Tipos de producto: PoE
Línea de productos: Tycon Systems
E-commerce relevant: Yes
93,95 $
Los precios pueden estar sujetos a aranceles.

1-888-946-6266 EXT 146 / sales.CALA@winncom.com

Disponible de lunes a viernes, de 8:00 a. m. a 5:00 p. m. (EST).

Gigabit DC to DC Converter


The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE 802.3af and IEEE 802.3at or Passive Power over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications.


They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W.


Ficha técnica

Tipos de producto PoE
Línea de productos Tycon Systems
E-commerce relevant Yes
